DEHAHA Combined Screw Air compressor is assembled with screw air compressor, refrigerated air dryer, air receiver tank and precision filter. Main Features 1.Full performance in one screw compressor, convenience and save space 2.High efficiency performance, reliable quality
3. Power: 3~37KW
4. Pressure:7~16bar
5. Capacity: 0.44~2.4m3/min

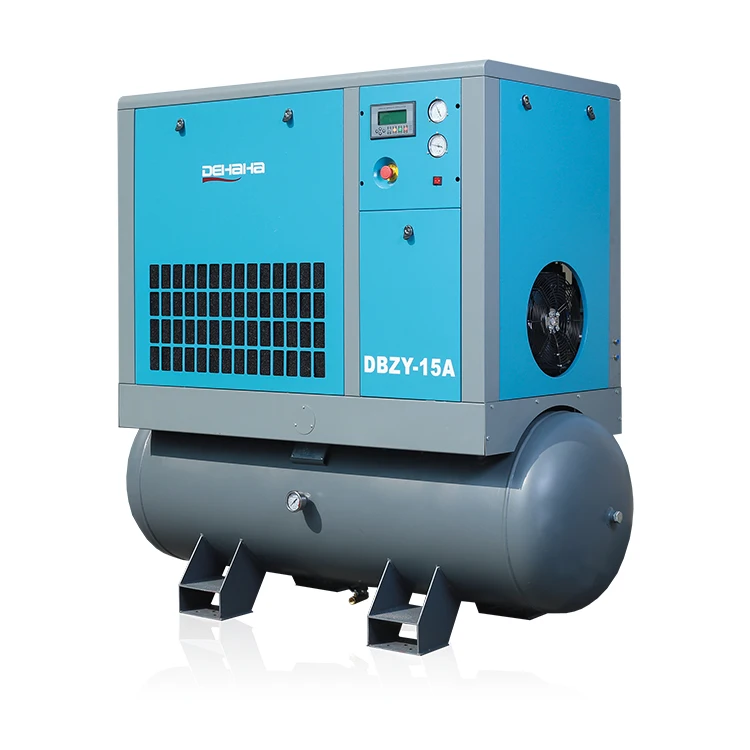

Model: DBZY-15A
Free air delivery: 1.05 m3/min 37cfm
Working pressure: 16 bar
Screw air end rotor lobe: 5:6
Control: Micro PLC controller
Driven: belt
Cooling: by air
Electric motor: 15hp 11KW 380v/50hz/3ph
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: G3/4”
Air tank: 500 L
Air dryer capacity: 1.6m3/min
Dimension: 1882*790*1731mm
Weight: 560kg
Technical Parameters
| Model | Air Delivery (m3/min) | Rated exhaust pressure (Mpa) | Power (kW) | Noise (Db) | Outlet diameter (In) | Dimension (mm) | Weight (Kg) | Exhaust pressure (℃) | Exhaust dust (μm) | Exhaust oil content (ppm) | Gas storage tank capacity (L) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DBZY-10A | 0.55 | 1.58 | 7.5 | 65 | G3/4 | 1418*700*1500 | 395 | 2~10 | 0.01 | 0.01 | 260 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DBZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DBZY-20A | 1.51 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DMZY-15A | 1.05 | 1.58 | 11 | 65 | G3/4 | 1882*790*1731 | 560 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DMZY-20A | 1.52 | 1.58 | 15 | 65 | G3/4 | 1882*790*1731 | 572 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DMZY-30A | 2.41 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DCZY-30A | 2.21 | 1.58 | 22 | 68 | G3/4 | 1882*1081*1801 | 630 | 2~10 | 0.01 | 0.01 | 500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Our Services
1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Jiangsu and all distributors’depots.
6.All kinds of technical documents in different languages.
